You are here: / / / MF DC Charging Station 60/240kW

MF DC Charging Station

CONTACT US
DC Charging Station

Commercial&Industrial

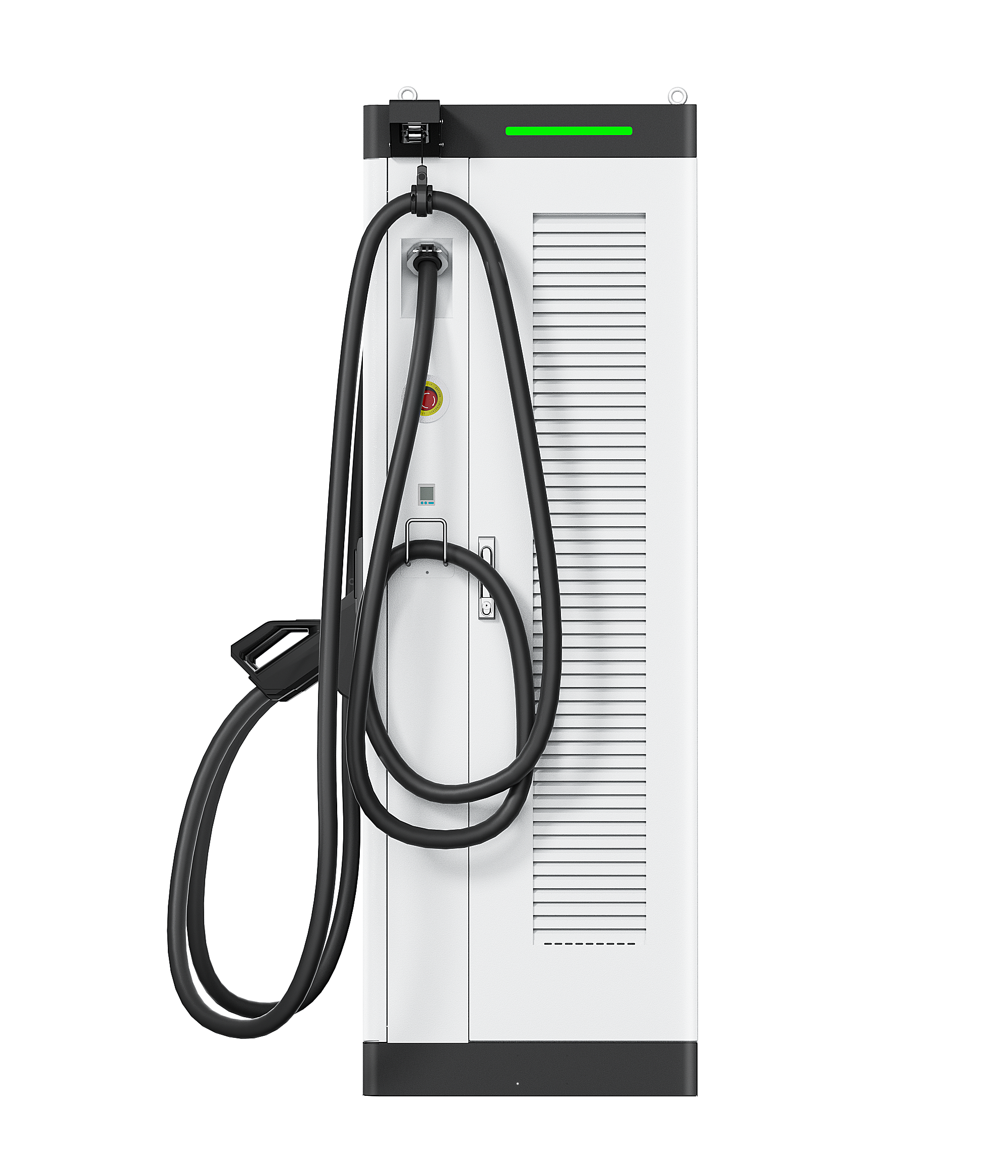

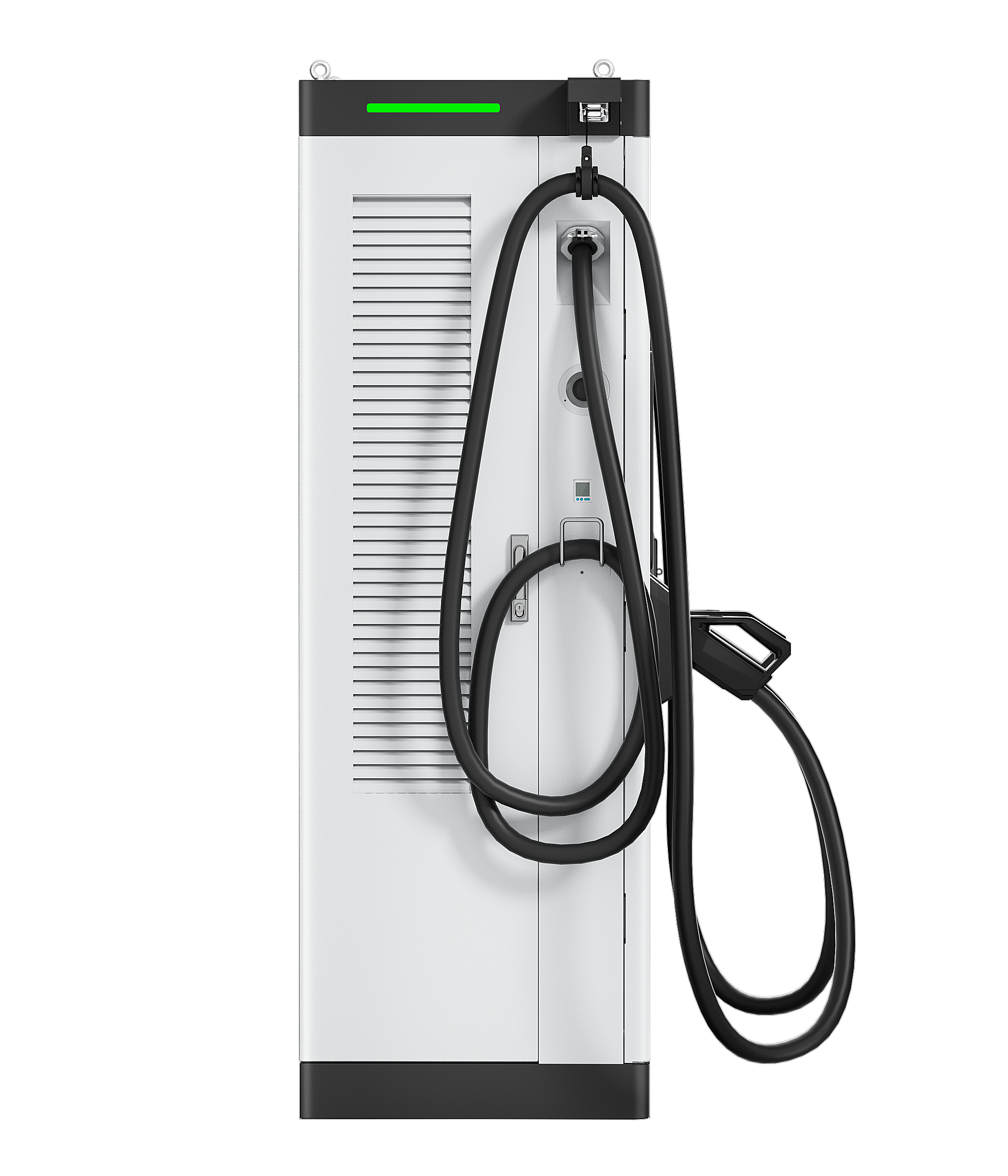

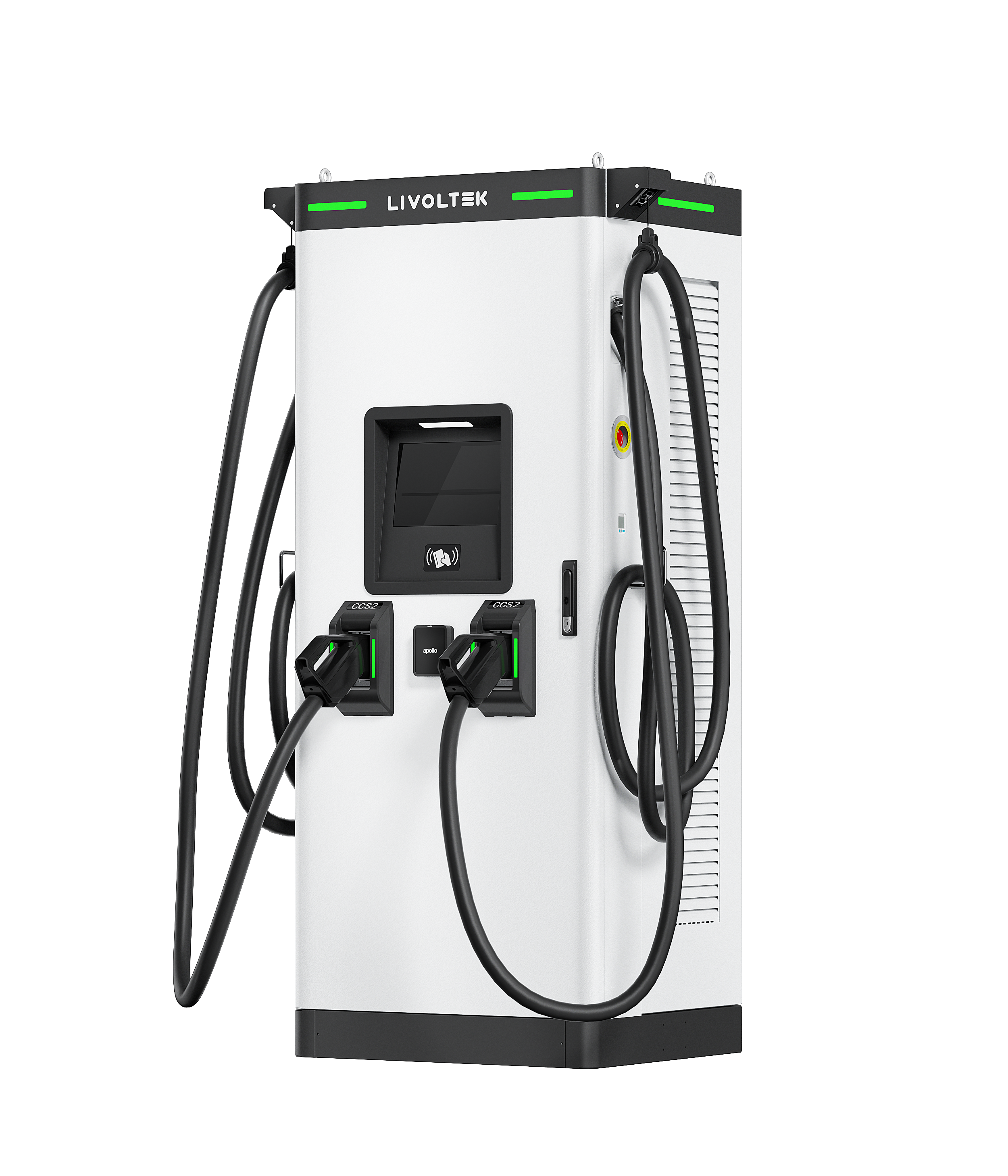

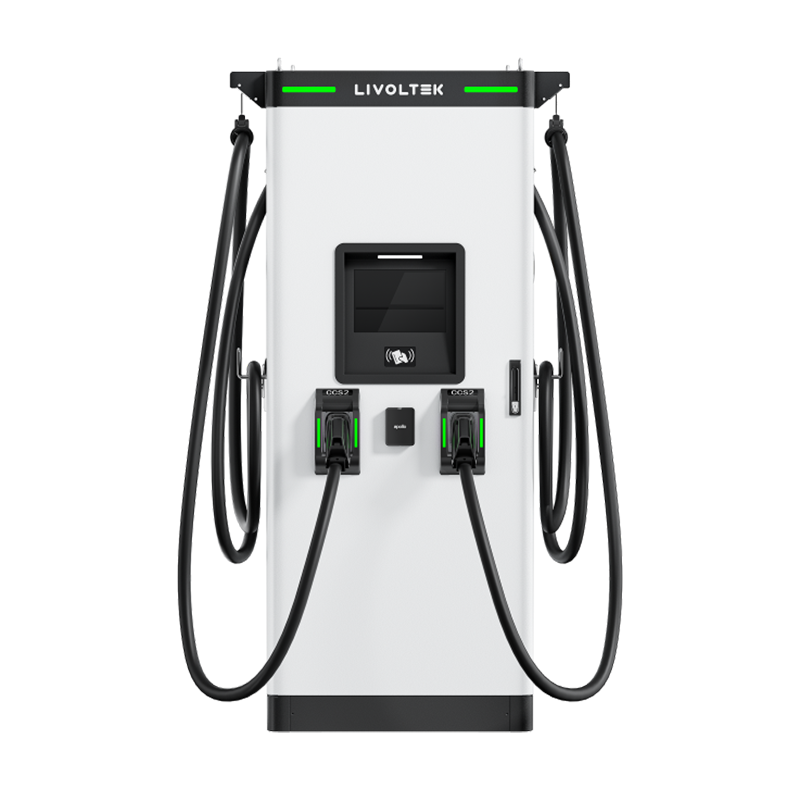

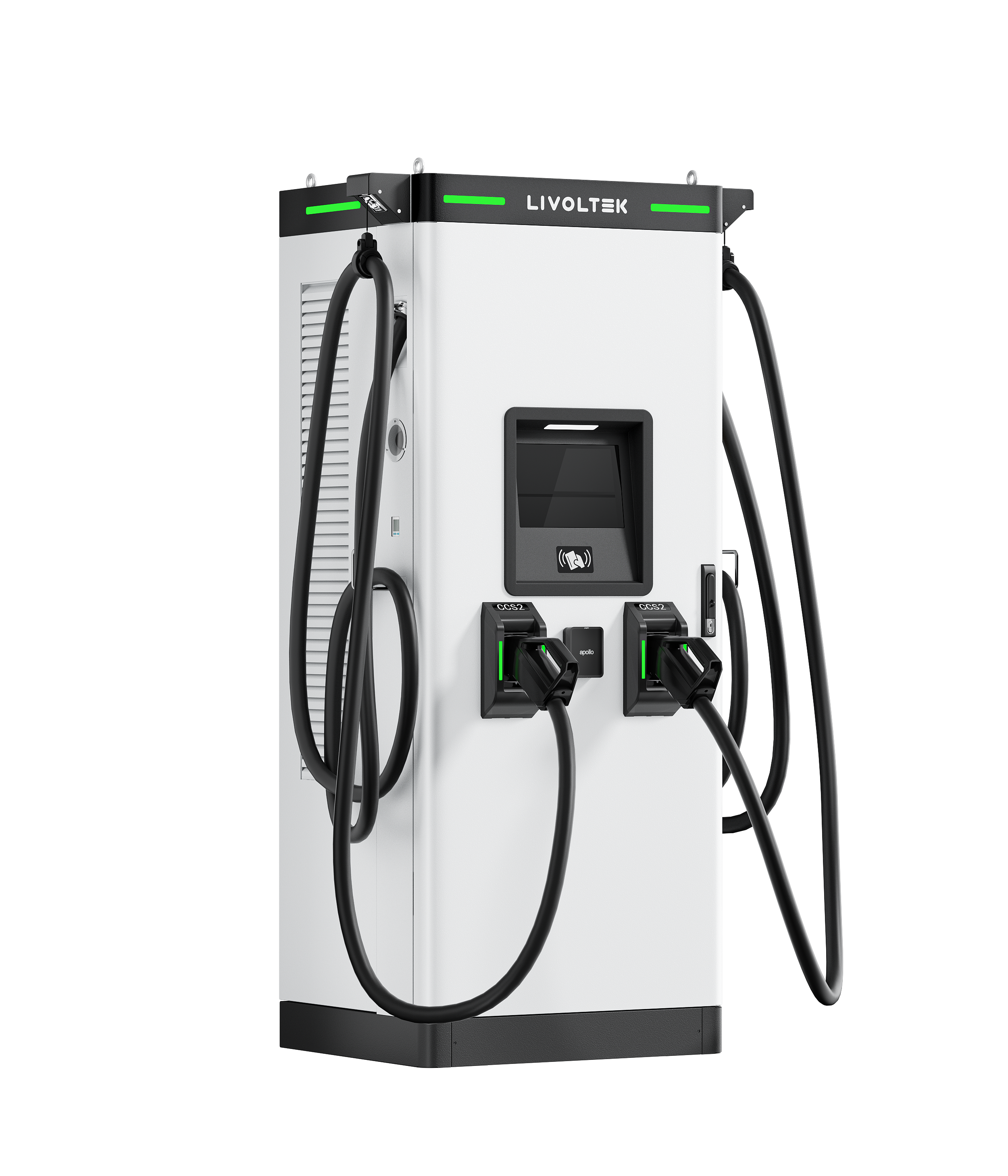

MotionFast DC Charging Station with Power Module

60/90/120/150/180kW 80/120/160/180/200/240kW 160/180/200/240kW

MF stand-alone DC charging station has a maximum output of 180kW for quick and flexible charging. The
LIVOLTEK stand-alone fast charging station features two DC outputs and can be configured with CCS2 and GB/T plugs. It also includes an intelligent cable management system.

Datasheet (60/180kW) Datasheet (80/240kW) Datasheet (160/240kW)

60/180kW with ACE30kW Power Module

80/240kW with HW40kW Power Module

160/240kW with ACE40kW Power Module

DC Charging Station

Future-proof design via open standards, OCPP 1.6J support remote update to OCPP2.0.1 protocol

CE and RoHS certification, suitable for all European countries need

Multi outlet compliance with CCS2 and GB/T

Interaction via 10.1’‘color touch display

Multi user authorization with RFID, APP

Installation

DC Charging Station
DC Charging Station
DC Charging Station
DC Charging Station
  • DC Charging Station
  • DC Charging Station
  • DC Charging Station
  • DC Charging Station
  • DC Charging Station
12345

MF DC Charging Station

MF 60/90/120/150/180 kW

Rated Power 60/90/120/150/180 kW
Output Voltage Range 150~1000Vdc
Output Current 200/250/300 A
Rated Frequency 50/60 Hz
Output Efficiency ≥95%
IP Degree IP54 | IK10

MF 80/120/160/180/200/240 kW

Rated Power 80/120/160/180/200/240 kW
Output Voltage Range 150~1000Vdc
Output Current 200/250/300 A
Rated Frequency 50/60 Hz
Output Efficiency ≥95%
IP Degree IP54 | IK10

MF 160/180/200/240 kW

Rated Power 160/180/200/240 kW
Output Voltage Range 150~1000Vdc
Output Current 200/250/300 A
Rated Frequency 50/60 Hz
Output Efficiency ≥95%
IP Degree IP54 | IK10
